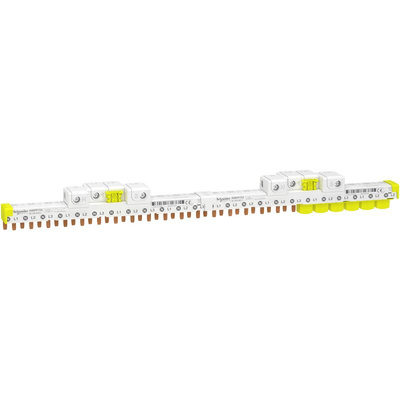

A9XPP724, Schneider Electric Acti9 1 Phase Busbar, 230 V, 400 V, 9mm Pitch

The Schneider Electric comb busbar Acti9 is 3P+N balanced with 9 mm pitch and 24 modules.

Number of ways 8 ways N + 3 L (balanced)
Poles configuration for 1 way 1 x 3P + N 1 x 3P 3 x 1P + N
Connection pitch 9 Mm between phase and neutral
18 mm between phases
Connector type tooth
Distance between way 54 mm
Marking N L1 N L2 N L3
Insulation Insulated
Device presentation Cuttable
Rated operational current 63 A at 40 °C
Rated operational voltage 230 V AC Ph/N
Rated insulation voltage 440 V AC conforming to IEC 61439-1
Rated impulse withstand voltage 4 kV
Mounting mode Horizontal
Mounting location Top on tunnel type terminals
9 mm pitches 48
Width 434 mm
Colour white
