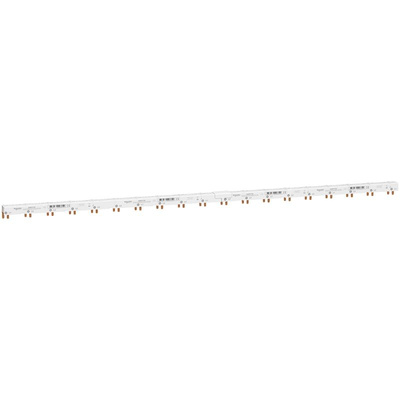

A9XPV748, Schneider Electric Acti9 1 Phase Busbar, 230V, 9mm Pitch

The Schneider Electric comb busbar Acti9 is 3L+N balanced with Aux and Vigi with 9 mm pitch and 48 modules.

Number of ways 18 ways Aux + N + L + Vigi
Poles configuration for 1 way 1 x 1P + N
Connection pitch 9 mm between phase and neutral
Connector type tooth
Distance between way 45 mm
Marking N L1 N L2 N L3
Insulation Insulated
Device presentation Cuttable
Rated operational current 80 A at 40 °C
Rated operational voltage 230 V AC Ph/N
Rated insulation voltage 400 V AC conforming to IEC 61439-1
Rated impulse withstand voltage 4 kV
Mounting mode Horizontal
Mounting location Top on tunnel type terminals
9 mm pitches 96
Height 29 mm
Width 862 mm
Depth 26 mm
Net weight 472 g
Colour white
