RS PRO M4 Connection Plate Connecting Component, Strut Profile 40 mm, Groove Size 8mm

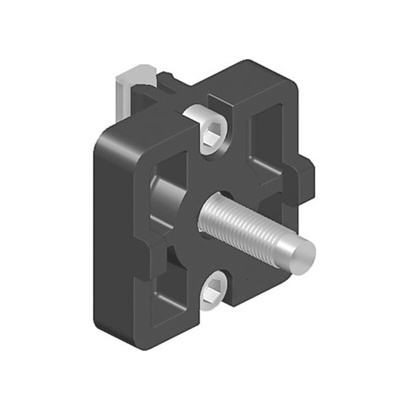

RS PRO Connection Plate

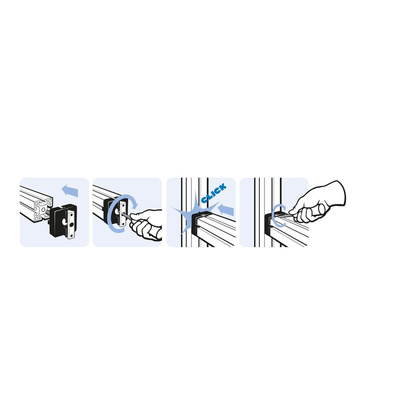

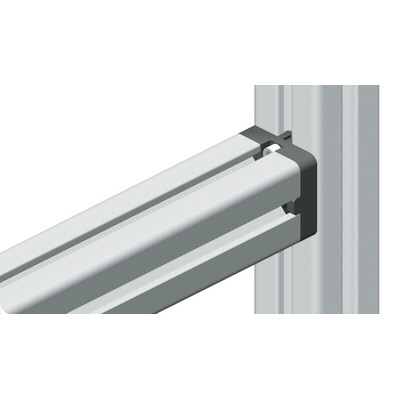

Use this connecting component with RS PRO Profile 8, 40 x 40mm Aluminium Alloy Struts. This connection plate is made from plastic PA, glass fibre reinforced, fits neatly into the 8-slot structure and secured via the supplied fittings to form a tee connect with two aluminium profiles.

Features and Benefits

• Connecting plate


• Material plastic PA, glass fibre reinforced


• Fits strut profile: 40 mm


• Compliance/certifications EN61340

What do you get – RS stock no: 238-4450

• Connector plate


• Wedge - Zinc plated steel


• Cylinder head screws (M4 x 14, zinc plated steel) x 2


• Self-tapping screw (SF7 x 25 with hexagon socket, zinc plated screw)

RS PRO Connection Plate Variant - Available Separately

• Connection plate with fittings included, RS stock no: 238-4450


• Connection plate without fittings, RS stock no: 767-5721

Compatibility

RS PRO Aluminium Struts - RS stock no: 761-3319, 761-3313 and 761-3322

Applications

• Guarding enclosures


• Work benches


• General enclosures

RS Structural System Profile Accessories

RS Structural System Profile Accessories include Cube Connectors, T-slot Nuts, Ball Catches, Turn Locks, Self Tapping Screws, Earthing Terminals, Cover Caps, and many other items. RS Structural System Profile Accessories are entirely compatible with Item Profile 6 and Profile 8 structural system components. RS Profile accessories are suitable for general workplace furniture system construction, offering light-weight, strong, easily interchangeable elements for a variety of profile types. The RS Structural System Profile Accessories form part of a modular system of components that may be constructed to form a wide variety of furniture structures, such as guarding enclosures, work benches, general enclosures, and other workplace fixtures.
