102991155, Seeed Studio Intelligent Gateway

Gateway - LoRaWAN US915

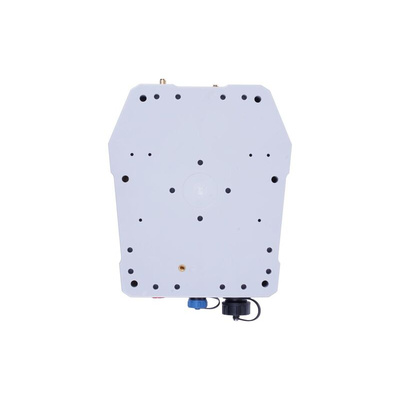

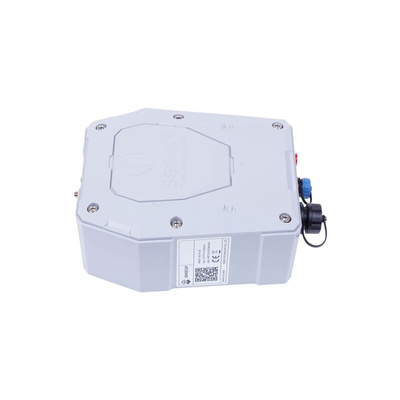

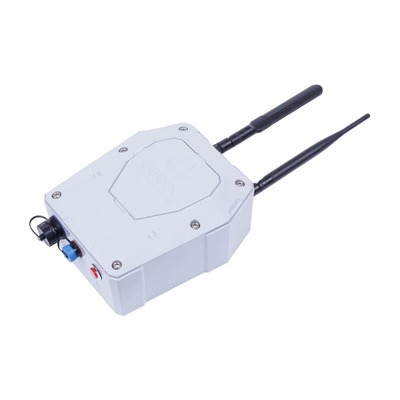

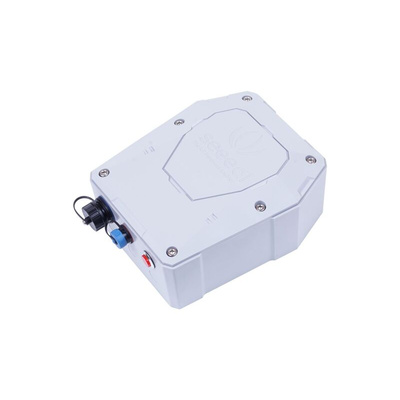

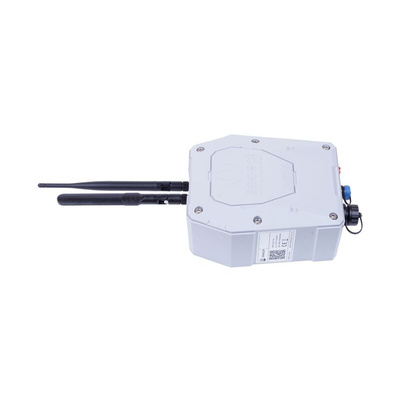

The Seeed Studio SenseCAP Gateway LoRaWAN is an IP66 industrial-grade outdoor product, supports an extended operating temperature range, making it applicable for low-power consumption, long-range data collection IoT scenarios like smart farming. It is based on LoRaWAN protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city. As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level LoRa chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.

High-performance Cortex A8 1GHz processor, Linux system
Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
Support multiple ISM bands CN470, EU868, US915
Support multiple methods to access the network 4G, Ethernet
Ultra-wide-distance transmission 10km in line of sight scene, 2 km in the urban scene
Industrial grade protection IP66 enclosure, temperature -40℃ to70℃, suitable for outdoor applications
Easy deployment, and rapid provisioning

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

UN38.3 Lithium Battery Test Summary

Datasheet - 102991155
