Testec 8000 Series TT-SI 8071 Oscilloscope Probe, Active, Differential Type, 70MHz, 1:10 / 1:100dB, BNC Connector

TT-SI 8071
active differential probe

The Testec active differential probe TT-SI 8071 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 70MHz / ±700V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter.
The probe is supplied in a hardcase with extensive accessories and factory calibration certificate.

Bandwidth: 70MHz
Rise time: 5ns
Attenuation ratio: x10 / x100
DC accuracy: ± 2%
Maximum input voltage:
Differential mode: ±70V (DC + AC Peak) @ x10
±700V (DC + AC Peak) @ x100
Common mode: ±700V (DC + Peak AC)
Each side to ground: 600Vrms CAT III / 1000Vrms CAT II
Safety standard: IEC61010-031: 2015

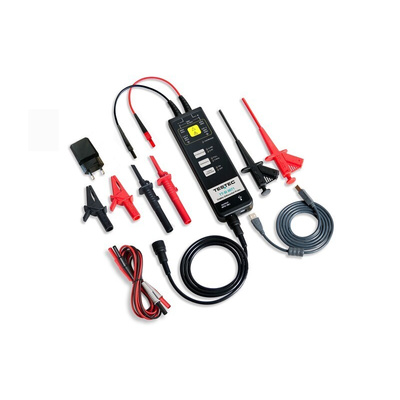

Scope of delivery:

1 x probe series 8000
1 x hardcase
2 x test leads with insulated banana plug 4mm (red & black)
2 x hook clips (red & black)
2 x pincer hook clip (red & black)
2 x crocodile clips (red & black)
1 x insulated BNC test lead 100cm
1 x USB power cord
1 x power adapter EU version
1 x factory calibration certificate
1 x user manual
