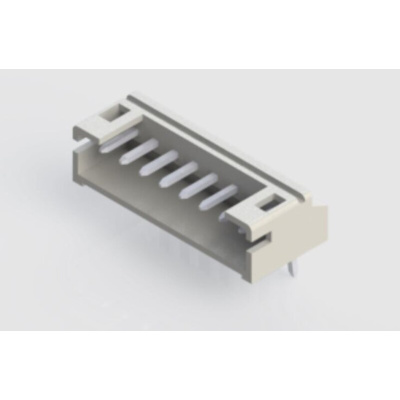

140-508-415-000, EDAC 140 Series Right Angle Through Hole PCB Header, 8 Contact(s), 2.0mm Pitch, 1 Row(s), Штыревой разъем

2388348
Номер производителя: 140-508-415-000Производитель: EDAC
Цена за шт. (норма упаковки 200 шт)
49.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The EDAC 140 series wire to board in-line 2.0 mm pitch connector with 8 P.C. board through hole contacts which are designed for high-density connection of internal wires to PCB and has side entry configuration. The first and last contact are kinked. It also features contact termination options which includes P.C. tail, surface mount.

Low profile insulator body
Board retention contacts available
Operating temperature -40°C to +105°C
Insulation resistance 1000 megaohms minimum
Insulator material PA66, UL94V-0

Техническая спецификация
pdfDatasheet - 140-508-415-000
