SKF 226400 E, Single Speed, Hydraulic Hand Pump, 0.2L, 3000 bar

SKF Hydraulic Hand Pump, 200cm³ Oil Container Capacity, 0.23cm³ Volume Per Stroke - 226400 E

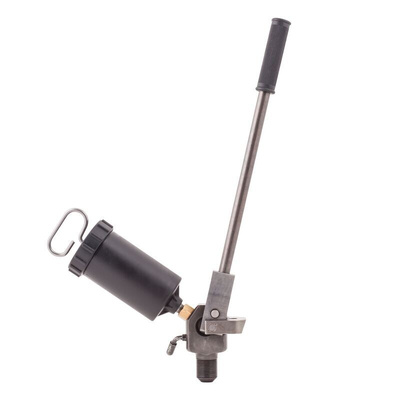

Need to quickly mount or dismount bearings? Keep them lubricated with this hydraulic hand pump from SKF. It's used to inject oil into the area between two rotating surfaces, reducing friction to let you smoothly get a bearing on or off. This also prevents damage to your equipment by limiting metal-on-metal contact. The large 200cm³ chamber means you get plenty of applications between refills. This hand pump is a cinch to use – you simply push down on the lever to release the oil.

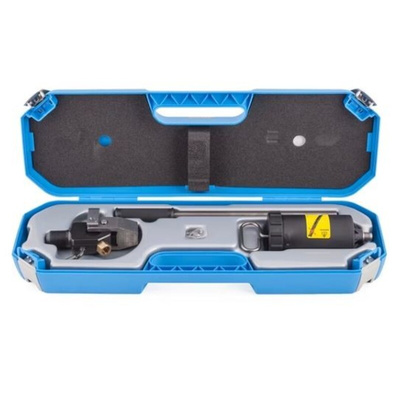

• Carrying case included to make pump and reservoir easy to transport
• Automatic return function keeps unused oil from leaking, limiting waste and mess
• Broad compatibility with SKF pressure gauges, adapter blocks, pipes and connecting nipples so it's highly versatile
• Flexible mounting either straight onto a workpiece or fitted to an adapter block to give a floor-standing pump

Applications

• Pressure and hydro testing
• Railway sector
• Factory repair and maintenance

The SKF 226400 E series is suitable for many applications using the SKF Oil Injection Method. The injector is supplied with an oil reservoir in a compact carrying case. The injector can be mounted directly onto the work piece or connected to an adapter block to make a floor standing model, making it easy to connect pressure gauges and high-pressure pipes. It is mostly used where 300 MPa pressure is required.

Can I use this unit to mount railway wheels?

Easy to operate
Compact carrying case
Can be used with a wide range of accessories
It is used for Bearings, Couplings, Railway wheels, Gear wheels, Flywheels

Yes – this hydraulic hand pump can supply pressures up to 300MPa, which is the amount typically needed for mounting railway wheels.

Datasheet - 226400 E

Catalogue - Shaft Couplings

Instruction Sheet - 226400 E
