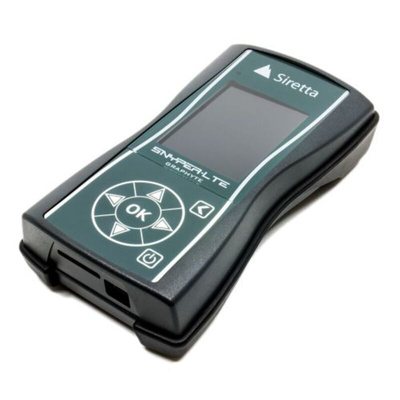

Siretta SNYPER-LTE Graphyte(EU) V2 RF Detector 2.3GHz

The Siretta the SNYPER-LTE Graphyte (EU) v2 is a signal analyser and datalogger has a black antenna for a frequency ranging between 700MHz and 2300 MHz and grey antenna for 2600MHz with SMA female antenna. It is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 4G/LTE (EU), 3G/UMTS and 2G/GSM European networks. The unit can be left to conduct sequential surveys in a fixed location and automatically save them. Four types of survey can be performed: a “FULL” survey (4G, 3G and 2G), 4G/LTE only, 3G/UMTS only and 2G/GSM only. It can save multiple surveys each with different logging options. All survey results can be downloaded to a PC and displayed in an HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base stations and intermittent cellular service which is not possible with spot surveys.

Enhanced cellular surveying and sequential logging of new and existing installations on 4G/3G networks
User selectable logging options to determine the most reliable mobile operator
Evaluate MNO’s performance over time
Determine “hotspots” and assist with antenna alignment with liveSCAN
Results are reported in CSV and graphical HTML format
Save over 100 logged surveys with multiple liveSCAN logs
Rugged and durable construction

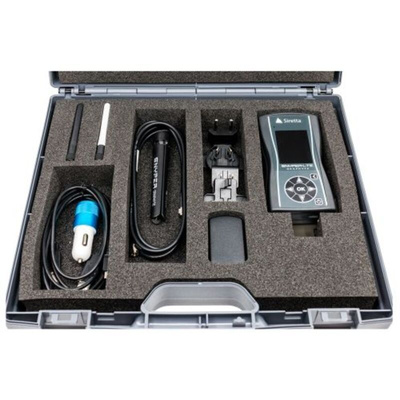

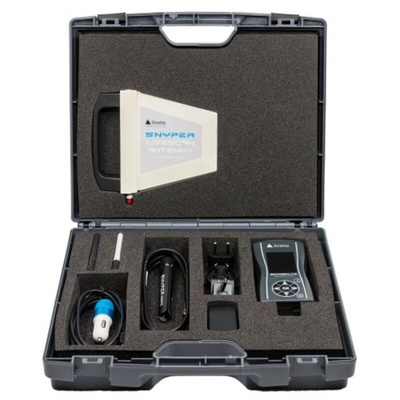

Supplied in a hard carry case
Multiple language support (English/French/German/Italian/Spanish)
Three result modes: Standard/Advanced/Engineer
USB cables for PC connection and power
Lithium-Ion 3.7V, 2000mAh battery

The full breakdown for the HTML summary graphs are displayed in corresponding CSV files. It also incorporates liveSCAN feature, which allows you to select a base station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

Datasheet - SNYPER-LTE Graphyte (EU) v2
