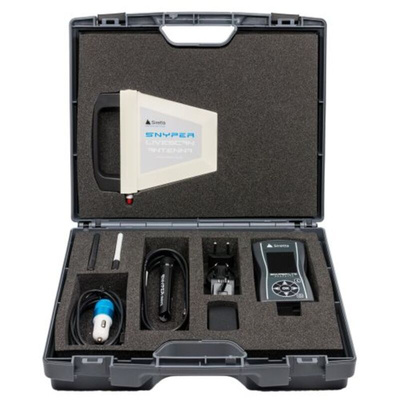

Siretta SNYPER-LTE Graphyte (USA) v2 RF Detector 2.3GHz

The Siretta the SNYPER-LTE Graphyte (USA) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 4G/LTE (USA) & 3G/UMTS North American networks.The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Three types of survey can be performed: a “FULL” survey (4G and 3G combined), 4G/LTE only & 3G/UMTS only. SNYPER-LTE Graphyte (USA) can save multiple surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys.

Enhanced cellular surveying & sequential logging of new and existing installations on 4G and 3G networks
User selectable survey logging options to determine most suitable & reliable mobile operator
Evaluate “preferred” MNO’s performance over time
Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
Results are reported in CSV & graphical HTML format
Save over 100 logged surveys with multiple liveSCAN logs

The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).The SNYPER-LTE Graphyte (USA) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.

Datasheet - SNYPER-LTE Graphyte (USA) v2
