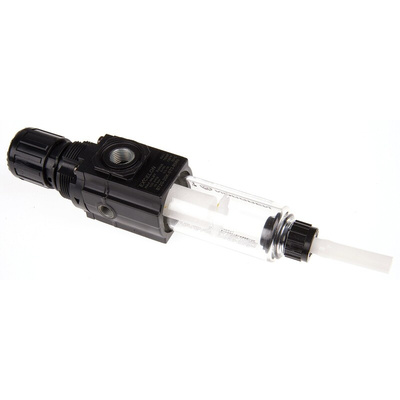

B72G-2GK-ST3-RMN, IMI Norgren B72G Filter Regulator 40μm G 1/4, 10 bar, Сборка

IMI Norgren Pneumatic Filter/regulator

The IMI Norgren 40μm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 10bar. The regulator has a die-cast zinc housing, an ABS seal and a polyethylene filter insert. It is installed vertical with a single pressure supply and without a pressure gauge.
Note:
Typical flow data is accurate with 10bar inlet pressure, 6.3 bar set pressure and a 1bar drop. Maximum inlet pressure is 10bar.

Features and Benefits

Balanced valve design minimizes the effect of variation in the inlet pressure on the outlet pressure
Excelon design allows in-line or modular installation
Full flow gauge ports
Helps protect air-operated equipment from overpressure by retarding excessive pressure build-up
High-efficiency oil and particle removal
Highly visible, prismatic liquid level indicator lens on metal bowls
Modular installations with Excelon 72, 73 and 74 series can be made to suit particular applications
Optional electrical service indicator also available
Optional service indicator turns from green to red when the filter element needs to be replaced
Push to lock adjusting knob with tamper-resistant accessory
Quick-release bayonet bowl
Standard relieving models allow reduction of downstream pressure when the system is dead-ended
Standard visual service life indicator turns from green to red when the filter element needs to be replaced

B72G Series Filter/Regulator Product Data
