BL72-201G, Norgren G 1/4 FRL, Automatic Drain, 40μm Filtration Size - With Pressure Gauge, Сборка

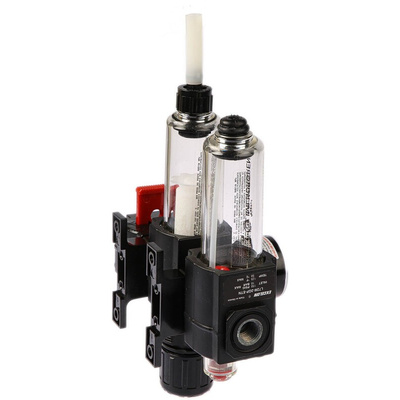

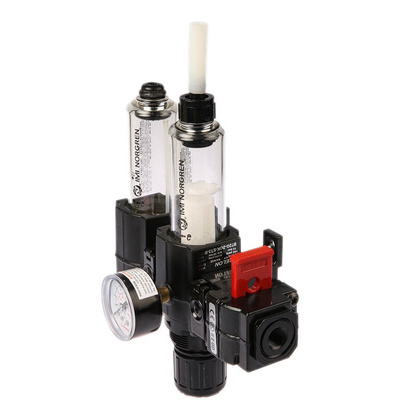

IMI Norgren Filter Regulator Lubricator With Pressure Gauge, Automatic Drain, 40μm Filtration - BL72 Series - BL72-201G

Choose this all-in-one filter regulator and lubricator from IMI Norgren to maintain efficient operating conditions in your pneumatic equipment. The filter element traps contaminants in a bowl to prevent dirty air supply, while the regulator manages the pressure level. As it features an automatic condensate drain, it's a practical choice for use in hard-to-reach places. A robust micro-fog lubricator keeps it lubricated to reduce the risk of wear in the components. This unit comes with a built-in pressure gauge for quick and easy monitoring.

Features & Benefits

• Push-to-lock knobs on regulators to prevent tampering
• Wide operating temperature range between -20°C and +50°C to withstand harsh conditions
• 40μm filtration grade to block tiny particles
• Shut-off valve to safely stop airflow in emergencies
• Operating pressure range between 0.3 and 10 bar for versatility

Applications

• Heating, ventilation and air-conditioning systems
• Food and beverage production

How do I mount this FRL?

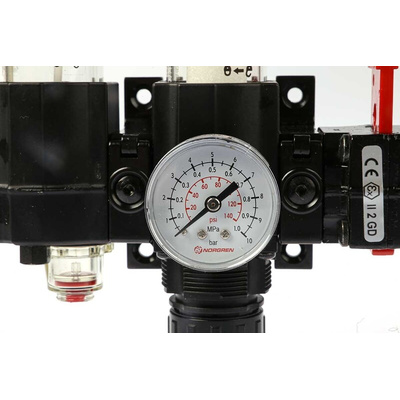

You can connect the main body of this FRL through its standard G1/4 port and the pressure gauge component through its Rc1/8 port. It comes with a quick-clamp mounting bracket for secure mounting.

Contents
type":"Contents",

G 1/4 Filter/regulator and micro-fog lubricator complete with exhausting shut-off valve, pressure gauge and mounting brackets. Semi-automatic drain.

Excelon Filters/Regulators and Lubricators Product Information
