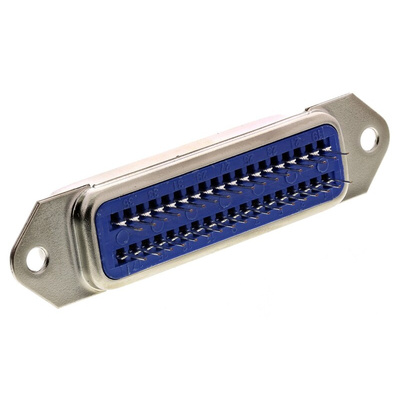

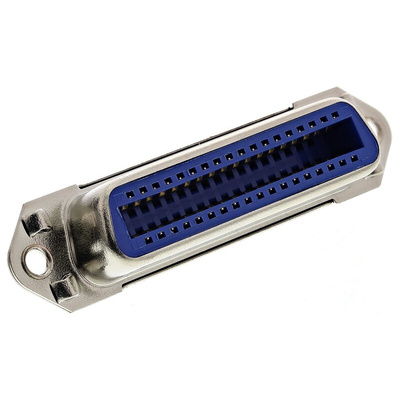

RS PRO Straight Through Hole Mount PCB Socket, 36-Contact, 2.16mm Pitch, Solder Termination

RS PRO 2.16 mm Pitch 36 Way Straight PCB Socket, Through Hole, Solder Termination

You can use this RS PRO straight printed circuit board (PCB) socket to connect two PCBs without the need for cabling or soldering. This type of socket allows you to easily connect and disconnect your PCBs, giving you more flexibility and simplifying the assembly process.
The connector socket features gold-plated ribbon contacts to ensure durability and a reliable connection. The contacts contain thermoplastic insulation that complies with Underwriters Laboratories UL94V-0 standard, which is the highest level of flame retardancy for plastics. The product is fitted with spring clips so you can assemble it easier. It also has metal covers to provide extra shielding and keep the connector protected from wear and tear.
This product is rigorously tested against electrostatic discharge (ESD) criteria. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be certain the risk of ESD is reduced.

Features and Benefits

• Straight body orientation
• Brass contact material
• Current rating of 12 A
• Through-hole mounting type
• 36 contacts
• Pitch of 2.16 mm
• Centronics series
• Solder termination method
