RS PRO 14-Way IDC Connector Plug for Cable Mount, 2-Row, Разъем

Cable Mounting Plugs

Plugs with tin-plated solder bucket terminations, supplied with a shielded metal cover and rubber cable gland.

RS PRO 14-Way IDC Connector Plug for Cable Mount, 2-Row

An IDC connector is also known as an insulation-displacement contact connector. It's a straightforward way of making I/O (input/output) interconnections and is used in a variety of industries for computing, communications and networking purposes. This RS PRO cable mount plug has 14 pins arranged in two rows. Couple it with a compatible socket-style female connector.

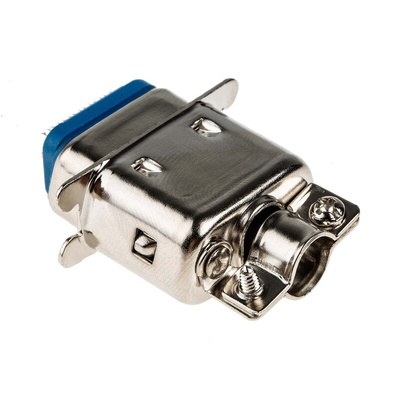

A tough D-shaped metal cover provides a supportive shield for the connector as well as making sure the plug stays properly positioned when paired. The metal housing features PBT (polybutylene terephthalate) for insulation. Solder bucket terminations are tin-plated to help prevent corrosion and there's a rubber cable gland to guard the unit against dirt and dust.

This connector plug meets international standards that guarantee the quality of the product. It has been stringently tested to ensure it operates safely and effectively as a Thyristor AC power controller (IEEE 428) and 8-bit parallel multi-master interface bus (IEEE 488).

Crimp bullet connectors can be found coupling wires in manufacturing equipment or making reliable fixes to automotive electronics, for example.

Features and Benefits

• 14 contacts
• Pitch of 2.18 mm
• 1A current rating
• Straight body orientation
• Minimum operating temperature of -55°C without cracking
• Maximum operating temperature of +105°C without melting
• Tin contact plating, brass contact material, PBT housing material for conductivity and insulation
• Conforms to standards IEEE 428 (thyristor ac power controllers), IEEE 488 (8-bit parallel multi-master interface bus)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

IEEE 428; IEEE 488
