RS PRO 36 Way Cable Mount D-sub Connector Plug, Разъем

Cable Mounting Plugs

Plugs with tin-plated solder bucket terminations, supplied with a shielded metal cover and rubber cable gland.

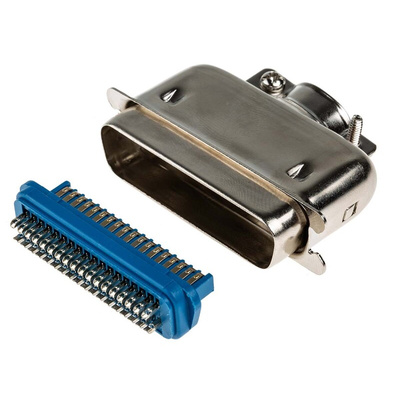

RS PRO 36 Way Cable Mount D-sub Connector Plug

A D-sub connector is a simple way of making I/O (input/output) interconnections and is used across industry in networking, communications and computing systems. This RS PRO 36-way cable mount plug features a double row of pins and couples with a compatible female connector.

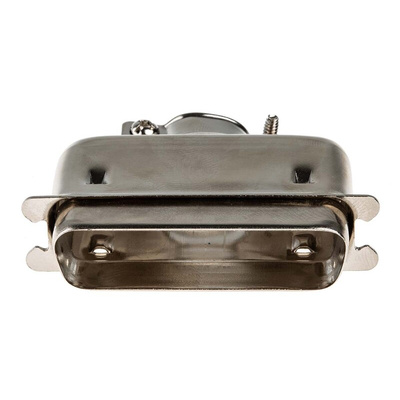

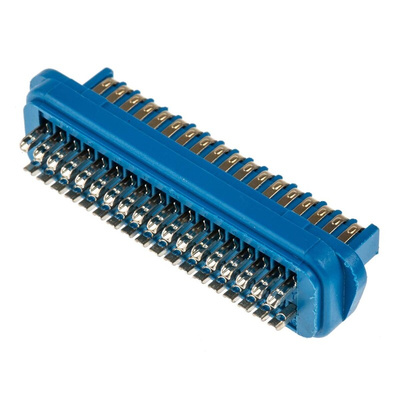

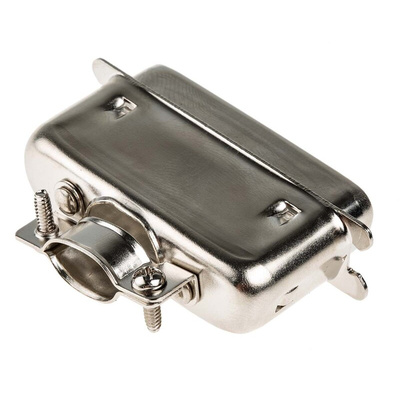

The housing is made from PBT (polybutylene terephthalate), a polymer known for its insulating properties. Tin-plated solder bucket terminations defend against corrosion. The connector is protected by a sturdy D-shaped metal cover which ensures the plug stays in the correct position when paired and also provides a supportive shield. A rubber cable gland helps stop dust and dirt from getting into the unit.

This connector plug meets international standards that guarantee the safety and efficacy of the product. It has been carefully tested to ensure its quality as a Thyristor AC power controller (IEEE 428) and 8-bit parallel multi-master interface bus (IEEE 488).

You can find D-sub connectors in any industry where computers are networked and attached to output devices such as printers or monitors, for example.

Features and Benefits

• 36 contacts
• Overall dimensions of 61.6 mm length x 15.3 mm depth x 42.4 mm width
• 1A current rating
• Straight body orientation
• Minimum operating temperature of -55°C without cracking
• Maximum operating temperature of +105°C without melting
• Gold contact plating, brass contact material, PBT housing material for effective conductivity and insulation
• Conforms to standards IEEE 428, IEEE 488

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

IEEE 428; IEEE 488
