RS PRO 50 Way Cable Mount D-sub Connector Plug, Разъем

Cable Mounting Plugs

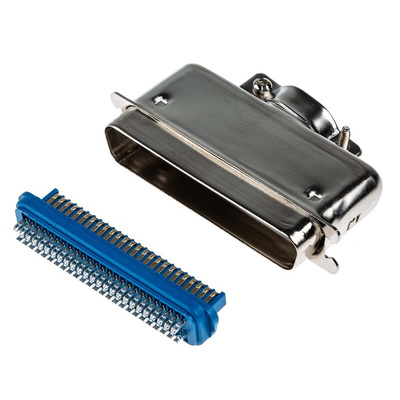

Plugs with tin-plated solder bucket terminations, supplied with a shielded metal cover and rubber cable gland.

IEEE 488 50 WAY CABLE MOUNT PLUG

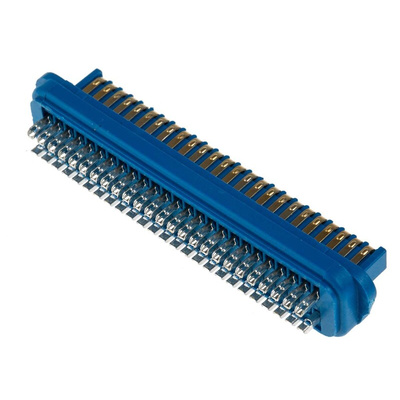

A D-sub connector is a straightforward way of linking input and output devices. This RS PRO 50-way cable mount plug has a double row of pins and is designed to couple with a compatible female connector.

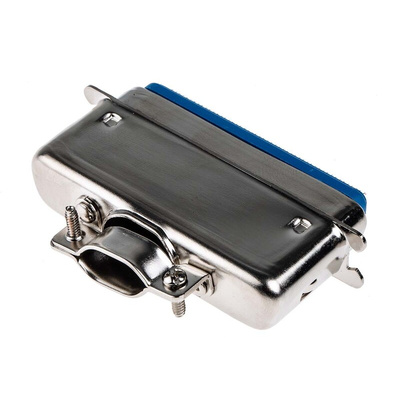

The robust D-shaped metal cover provides a supportive shield for the connector and makes sure the plug stays in position once paired. The housing material is made from a polymer known as PBT (polybutylene terephthalate), which provides effective insulation. Its solder bucket terminations are tin-plated to guard against corrosion and a rubber gland on the cable helps to keep dirt and dust out of the unit.

This connector plug conforms to a variety of international standards that guarantee the safety and efficacy of the product. It has been carefully tested to ensure its quality as a Thyristor AC power controller (IEEE 428) and 8-bit parallel multi-master interface bus (IEEE 488).

As a key part of many computing, communications and networking systems, a D-sub connector can be found joining computers to printers or monitors, for example.

Features and Benefits

• 50 contacts
• Overall dimensions of 76.7 mm length x 15.3 mm depth x 45 mm width
• 5A current rating
• Straight body orientation
• Minimum operating temperature of -55°C
• Maximum operating temperature of +105°C
• Gold contact plating, brass contact material, PBT housing material for effective conducting and insulating where you need it
• Conforms to standards IEEE 428 (Thyristor AC power controller), IEEE 488 (8-bit parallel multi-master interface bus)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

IEEE 428; IEEE 488
