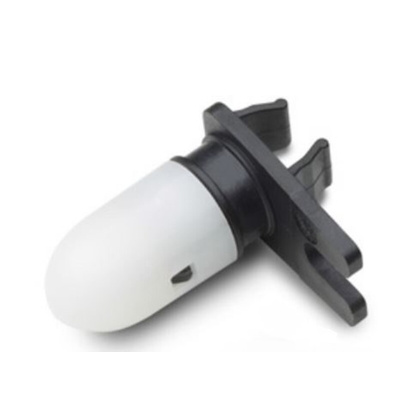

Broadcom AFBR-S10PS010Z Fibre Optic Receiver, Round

The Broadcom optical point sensor with self-supervision functionality. The light that meets the point sensor is captured and fed into a plastic optical fiber (POF). The self-supervision functionality is achieved by an in-built coupling between two fibers. The special POF-based sensor design allows the system engineer to avoid any galvanic contact between the arc flash area and the detection electronics The point sensor consists of two parts i.e, the sensor head and the connector. Both sensor head and connector are part of Broadcom’s comprehensive arc flash detection portfolio. In combination with Broadcom’s sensor transceiver, they are intended to be used for the detection of arc flash events in electrical power grids.

Light capturing through the translucent head of the point sensor
Light coupling into a plastic optical fiber by means of the plastic optical fiber connector
Optical link self-supervision supported (heartbeat signal)
Low Halogen and RoHS compliance
UL flammability UL94HB
Good chemical resistance
Operating temperature range -40°C to 85°C
Acceptance cone exceeds 180° spherical with high homogeneity
