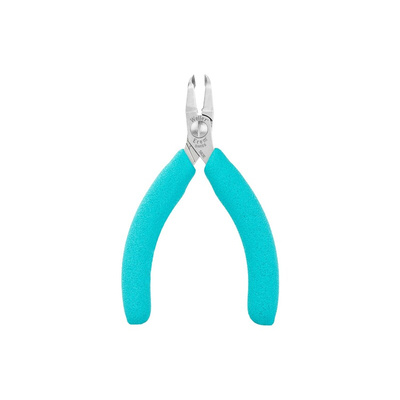

582E, Weller Erem 115 mm Tip Cutters, Кабельные ножницы

Angled Head Small Cable Cutters

Small angle cable cutters which are suitable for working on printed-circuit boards, component connections and can be used in both 90° and 180° applications. These cutters have a full flush cut and can be used on medium hard wire, stainless steel wire, material 1.4301. tensile strength 800 MPa. As well as soft wire, copper, aluminium, tensile strength 250 MPa.

These electronics cutters are manufactured from high quality machined tool steel. The cutters feature a built-in internal stop and integral return spring to prevent blade overlapping and reduce operator fatigue. All cutters are supplied with soft grip foam rubber grips.

Versions available are:

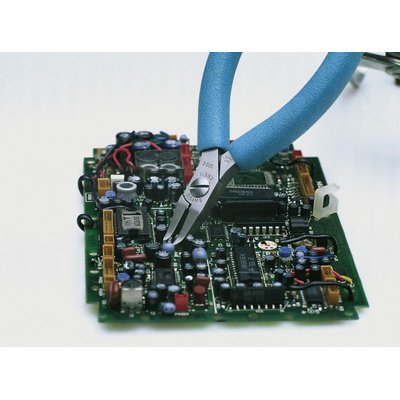

239-4010 - Model 582E is designed for PCB component lead cutting, NATO and UK MOD approved 5110-99-256 52 58, 45 degree angle

239-4026 - Model 593AE is designed for rear cutting of DIP leads and dense PCBs, 30 degree angle

Applications:

Cable Cutters are tools designed with electricians in mind, but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:
• Electricians
• Gas engineers
• Telecommunication engineers
• Car mechanics
• DIY enthusiasts

Features and Benefits:

• Medium head size angle cutter


• Tip cutter – angled narrow head


• 20 awg wire and smaller and nickel ribbon .010-.303


• Series 500


• Flush cut – leaves a smaller tip at the end of the wire than a semi-flush cut


• ESD safe – can be used in areas where there may be a sudden flow of electrostatic discharge which can destroy sensitive electronic components


• Length: 115 mm


• Angle 40 degrees


• Length of cutting edges: 6 mm


• Head width: 11 mm


• Head thickness: 6 mm


• Head length: 26 mm


• Max. cutting capability – medium hardness: Ø 0.6 mm


• Max. cutting capability – copper wire: Ø 1.3 mm


• Weight: 68 g

FAQ:
What is the maximum cutting capacity?

The maximum cutting capacity for these cutters is 1.3 mm.

It is essential that you have the right wire cutter providing you with a clean cut through cable and wire. These wire cutters will cut cleanly and easily with the 1.3 mm cutting capacity. The cable and wire cutter are excellent for use on;
Copper wire
Aluminium wire
Steel wire

Approvals

NATO; UK MOD Approved 5110-99-256 52 58

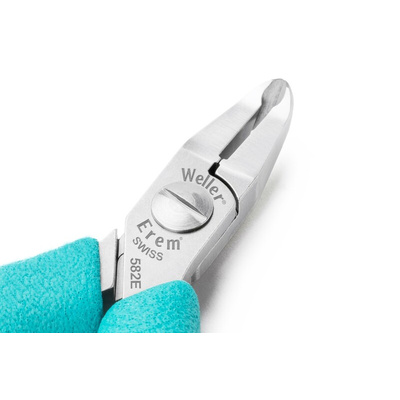

582E Angled Tip Cutter

Series 500 Datasheet
