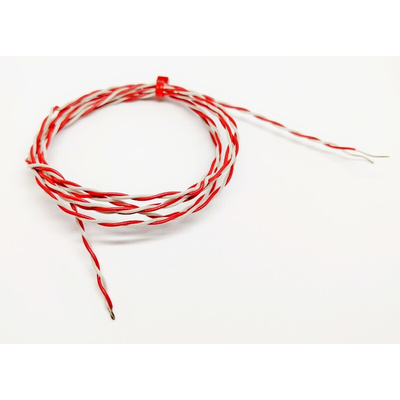

RS PRO Type K Thermocouple 1m Length, 1/0.3mm Diameter → +250°C

RS PRO Type K Exposed Welded Tip Thermocouples – Bare Tails

When you need the very best in thermocouple wire then choose the RS PRO range of Type K fine wire thermocouples. These bare tail wires are RoHS compliant, durable and PFA insulated. They are available in various core strands, 1/0.2 mm, 1/ 0.3 mm or 7/0.2 mm which is ideal for terminating sensors during temperature mapping and OEM applications.

How does a Thermocouple Work?

A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect.

What is a Welded Exposed Junction?

An exposed junction is where the thermocouple wires are welded together but not surrounded by the outer sheath. The ends of the wire are directly inserted into the process. This means the thermocouple has a high sensitivity and response time. Welded exposed junctions are more prone to corrosion and are recommended for measuring flowing or static non-corrosive gas temperatures.

Features and Benefits

• JIS Thermocouple Wire


• Bare tails


• Exposed welded junction for fast response


• Durable PFA insulation for resistance to oils, acids and fluids and good mechanical strength and flexibility


• Conductor size: 1/0.2 mm, 1/0.3 mm and 7/0.2 mm


• Lengths: 1 m, 2 m, 5 m and 10 m available


• Temperature range from -75 to +250°C

Applications

• Test and development


• Test and measurement


• Temperature mapping


• OEM applications
