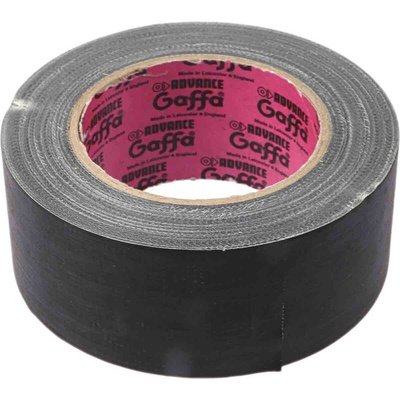

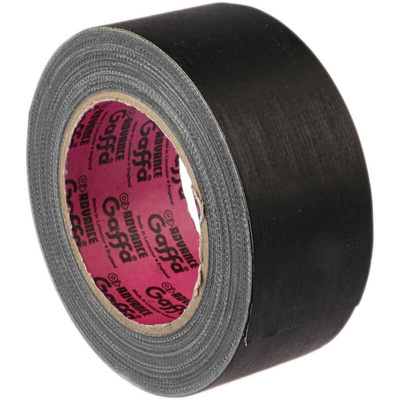

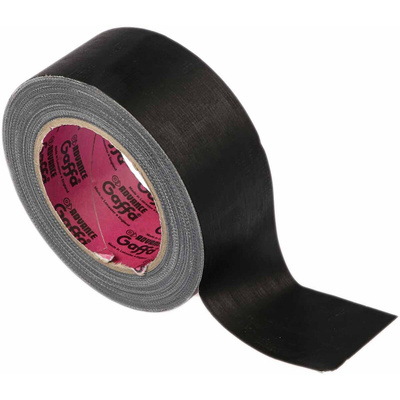

Advance Tapes AT200 Black Matt Gaffa Tape, 50mm x 25m, 0.26mm Thick, Лента

RS PRO Thermocouple Extension Wire

The Advance Tapes AT200 series is a black ultra matt polythene extruded gaffa cloth tape, coated with a cable-friendly adhesive that is designed to peel from clean surfaces. This tape is 0.26mm thick, 50mm wide and 25m long.

Features and Benefits

Writable surface finish
Flame retardant in situ
Clean peel adhesive
Easy unwind very easy tear
Wide colour range
Wide temperature range
Water-resistant in situ
Good abrasion resistance
Comfortable to awkward shapes
Non-corrosive adhesive
Breaking load is 40N/cm
Elongation is 20%
Service temperature rating ranges between -10°C and 80°C

Applications

Securing and bundling cables
Colour coding on lighting and mixing desks

From the trusted brand RS PRO, comes a range of high quality and great value thermocouple extension wire. Manufactured to industry standards, these extension wire are an excellent solution for extending the distance between a temperature probe and the instrument that providing the reading.

Features and benefits

• Maximum operating temperature of up to +105 °C


• Flat pair conductors


• Insulated with high quality PVC


• Unscreened construction


• 2 cores


• Colour: Blue outer with Red & White inner


• Stranded conductors: 7/0.2mm


• Available in 10 m, 25 m, 50 m 100 m and 200 m lengths


• Thermocouple Type: Type K


• JIS (Japanese Industrial Standards)

Applications

• Medical - research into DNA and hypodermic insertion to detecting a tumour


• Vehicle diagnostics - used to monitor and adjust factors such as battery health, exhaust readings, spark plug function and brake performance.


• Temperature readings in boilers, heating sensors, and ovens


• Food thermometers, industrial probes, and sensors

FAQs

What is the difference between screened and unscreened cables?
Screened share a lot in common with unscreened cables however screened cables emit less electromagnetic energy which can cause signal interference with cables that are nearby.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

AT200 Ultra Matt Cloth Gaffa Tape Data Sheet
