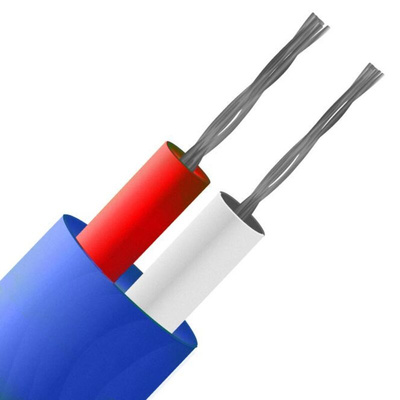

RS PRO Type K Thermocouple Wire, 10m, Unscreened, PFA Insulation, +260°C Max, 1/0.2mm

RS PRO Thermocouple Extension Wire

From the trusted brand RS PRO, comes a range of high quality and great value thermocouple extension wire. Manufactured to industry standards, these extension wire are an excellent solution for extending the distance between a temperature probe and the instrument that providing the reading.

Features and benefits

• Maximum operating temperature of up to +260 °C


• Flat pair conductors


• Insulated with high quality PFA (Perfluoroalkoxy)


• Unscreened construction


• 2 cores


• Colour: Blue outer with Red & White inner


• Stranded conductors available, either 1/0.2mm, 1/0.3mm, 1/0.5mm


• Available in 10 m, 25 m, 50 m 100 m and 200 m lengths


• Tolerance class 1 for optimum accuracy


• Thermocouple Type: Type K


• RoHS (Restriction of Hazardous Substances Directive) and IEC 584-3 compliant

Applications

• Medical - research into DNA and hypodermic insertion to detecting a tumour


• Vehicle diagnostics - used to monitor and adjust factors such as battery health, exhaust readings, spark plug function and brake performance.


• Temperature readings in boilers, heating sensors, and ovens


• Food thermometers, industrial probes, and sensors

FAQs

What is the difference between screened and unscreened cables?
Screened share a lot in common with unscreened cables however screened cables emit less electromagnetic energy which can cause signal interference with cables that are nearby.

Why choose RS PRO?

What is the difference between screened and unscreened cables?

Screened share a lot in common with unscreened cables however screened cables emit less electromagnetic energy which can cause signal interference with cables that are nearby.
