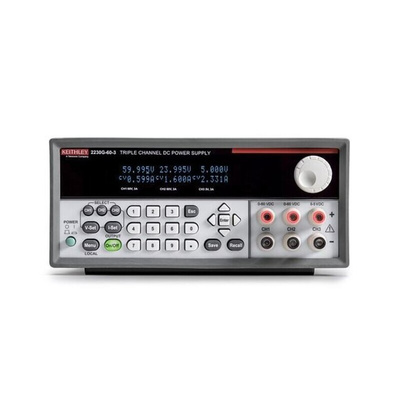

2230-60-3 Output Voltage, 2230-60-3 | Keithley Bench Power Supply, 375W, 2 Output, 60V, 3A

The Keithley Series 2230 3-Channel Programmable Power Supplies provide up to 375 W of power in a space-saving 2U high, half-rack width enclosure to power automotive circuits, LED drivers, power supplies, power ICs, and other high-power circuits. The 2230-30-3 offers 195 W with two 30 V, 3 A channels and a 5 V, 3 A channel. The 2230-30 6 and the 2230-60-3 supplies output as much as 375 W. The 2230-30-6 provides two 30 V, 6 A channels, while the 2230-60-3 has two 60 V, 3 A channels. Both 375 W supplies have a 5 V, 3 A channel as the third channel. These three supplies are linear power supplies","thus, they are low noise supplies to have minimal impact on a device-under test (DUT), Each channel has a rectangular output characteristic to enable obtaining the full current at the maximum voltage so that the 2230-30-6 can supply 30 V to a 6 A load and the 2230-60-3 can supply 60 V to a 3 A load.
Convenience features simplify manual operationTest automation optionsDeliver accurate voltages to the loadSave space and minimize test lead length Protection for your DUT in both manual and automated operation
