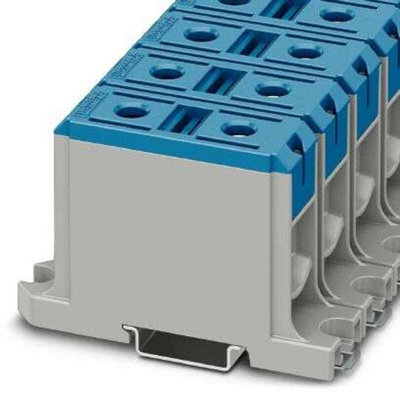

1086476, Phoenix Contact UBAL 95 BU Series Blue High Current Connector, 16mm², Single-Level, Screw Termination, Клеммная колодка

The Phoenix Contact High-current terminal block has 1000V voltage and 220A current. It has screw connection type. The product has 2 number of connections. Tailor-made screw connection for multi-stranded aluminium conductors and copper wires. Maintenance-free terminal points that are greased beforehand simplify the connection of aluminium conductors. Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval.

Number of positions 1
Number of levels 1
Number of connections 2
Maximum load current 232 A (with 95 mm² conductor cross section)
Nominal current IN 232 A
Nominal voltage UN 1000 V

Datasheet - 1086476
