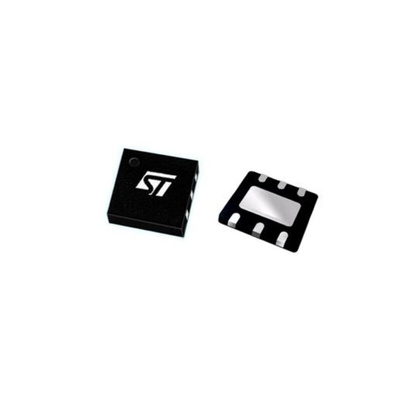

STMicroelectronics STLQ020PU33R, 1 Low Dropout Voltage, Voltage Regulator 200mA, 0.8 → 4.5 V

The STMicroelectronics STLQ020 is a 200 mA low-dropout voltage regulator, able to work with an input voltage ranging from 2 V to 5.5 V. The typical dropout voltage at maximum load is 160 mV. The ultra-low quiescent current, which is just 0.3 μA at no load, extends battery-life of applications requiring very long standby time. Even though the device intrinsic consumption is ultra-low, STLQ020 is able to provide fast transient response and good PSRR performance, thanks to its adaptive biasing circuit and enable pin puts the STLQ020 in shutdown mode, reducing total current consumption to 5 nA.

Controlled Iq in dropout conditions
Very low-dropout voltage: 160 mV at 200 mA
Output voltage versions
Logic-controlled electronic shutdown
Output discharge feature (optional)
Internal overcurrent and thermal protections
Temperature range: from -40 °C to +125 °C
Packages: DFN6-2x2, SOT323-5L, Flip-Chip4
Ultra-low quiescent current

The STLQ020 is designed to keep the quiescent current under control and at a low value also during dropout operation, helping to extend even more the operating time of battery- powered devices. It also includes short-circuit constant-current limiting and thermal protection.

Datasheet - STLQ020PU33R
