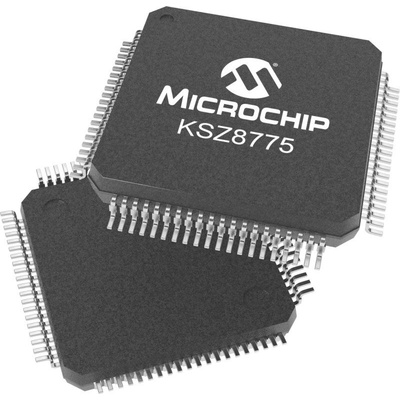

Microchip KSZ8775CLXIC, Ethernet Switch IC, 10 → 100Mbps MII, RGMII, RMII, 3.3 V, 80-Pin LQFP

The Microchip KSZ8775CLX series of highly integrated, Layer 2-managed, five-port switch come with numerous features designed to reduce system cost. It is intended for cost-sensitive applications requiring three 10/100 Mbps copper ports, one RMII on Port 4, and one 10/100/1000Mbps Gigabit uplink port on Port 5. The KSZ8775CLX incorporates a small package outline, the lowest power consumption with internal biasing, and on-chip termination. Its extensive set of features include enhanced power management, programmable rate limiting and priority ratio, tagged and port-based VLAN, port-based security and ACL rule-based packet filtering technology, QoS priority with four queues, management interfaces, enhanced MIB counters, high-performance memory bandwidth, and a shared memory-based switch fabric with non-blocking support.

Supply voltage range from –0.5 V to +1.8 V
Input and output voltage range from –0.5V to +4.0V
Three integrated 10/100BASE-T/TX MAC/PHYs
One integrated 10/100BASE-T/TX MAC with RMII interface
One integrated 10/100/1000Base-T/TX GMAC with selectable RGMII, MII, and RMII interfaces
Storage temperature from –55°C to +150°C

Datasheet - KSZ8775CLXIC
