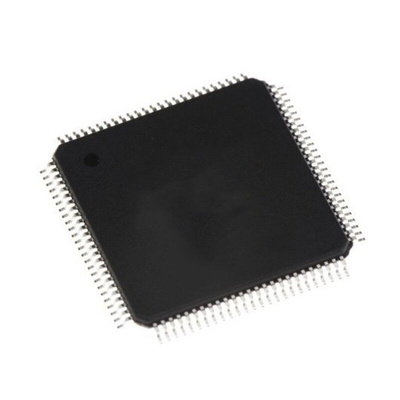

Renesas Electronics R7FA6T2BD3CFP#BA0, 32bit ARM Cortex M33 Microcontroller, RA6T2, 240MHz, 1 MB Flash, 100-Pin LQFP

The Renesas Electronics high-performance 240 MHz Arm Cortex-M33 core microcontroller is used for high end motor control. It has Integrated general PWM timer with 200 MHz operation and high resolution. It combines a high-performance arm Cortex-M33 CPU and abundant peripheral functions into a single chip for excellent performance in motor applications. High speed CPU performance and motor dedicated functions realize next-gen motor algorithm and differentiators in motor fields. The combination of a powerful CPU, accelerators, and high-speed memory realizes high real-time performance, which is important for motor control.

512kb flash memory and 64kb SRAM (with ECC), 16kb data flash
Accelerators for motor control (TFU, IIR filter)
GPT32 10ch, AGTW 2ch
12-bit ADC 3ch S/H x 2unit, 12-bit DAC 4ch
PGA 4 channel, comparator 4 channel
CAN-FD support
Safety and security
100-pin package

Benefits

Optimized for motor control, it achieves high performance while suppressing BOM cost
Easy to use solutions for motor control
Motor control kit with workbench
e-IA motor failure detection solution
Functional safety solution

Applications

Motor applications
Home Appliances (Washer/Dryer, Dishwasher, IH Cooking, Air conditioner(ODU))
Power Tools
Industrial Automation (AC drive, AC servo, HVAC, Actuator, Power conditioner)
Building Automation (HVAC, Door system)

Datasheet - R7FA6T2BD3CFP#BA0
