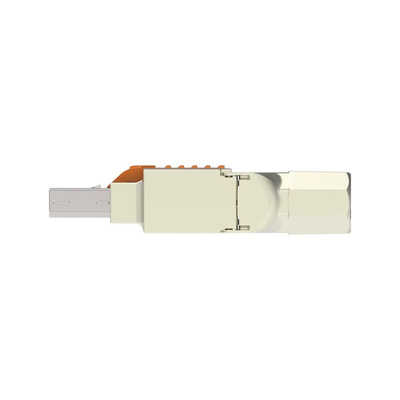

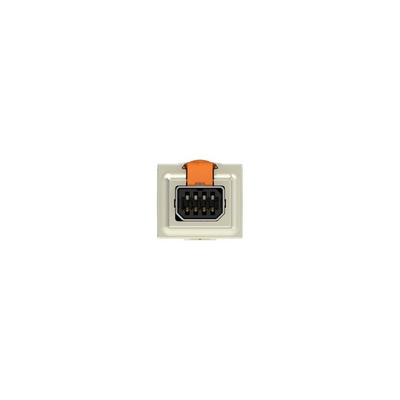

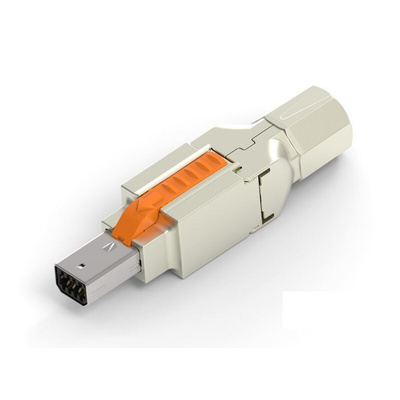

2350310-2 Series, 2350310-2 | TE Connectivity, Industrial Mini I/O Cable Mount Mini I/O Connector Plug, 8 Way

The TE Connectivity industrial mini I/O field installable connector can be used in Cat6A Ethernet connections where fast and flawless field installation is an important requirement. It can be connected to the cable without special tools and can accommodate 8-wire AWG24/26 cables. The Industrial Mini I/O connector system is a compact, wire to wire and wire-to-board solution for reliable serial, bus, and Ethernet connections in industrial applications. Measuring only one quarter of the size of conventional RJ45 plugs, the Industrial Mini I/O connector provides space saving on a PCB – space that can now be used more efficiently. The connector automatically cuts off the wire at the optimal length during contacting guaranteeing optimal transmission performance, To meet current network data rates. Cat5e (1Gbps) and Cat6A (10 Gbps) variants are available Both Type I (D-Mating Interface) and Type II (U- Mating Interface) are available to prevent connector mis-mating.
Easy, quick and error free installationCamera and other high-speed peripherals can be connectedCompactOperating temperature: -40 °C ∼ 105 °CDurability: 750 cycles tested
