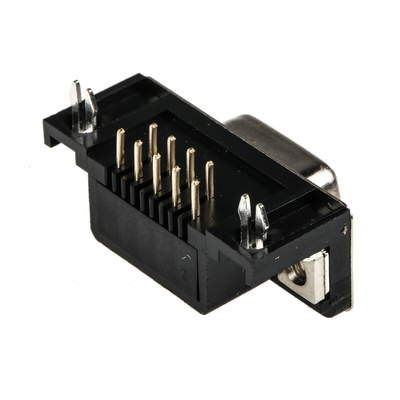

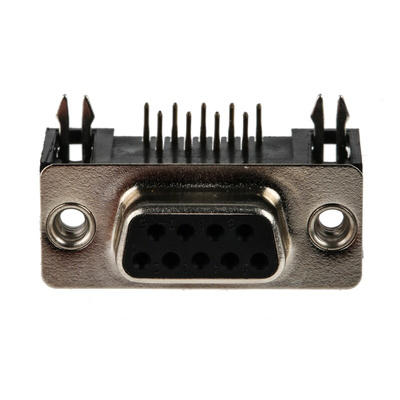

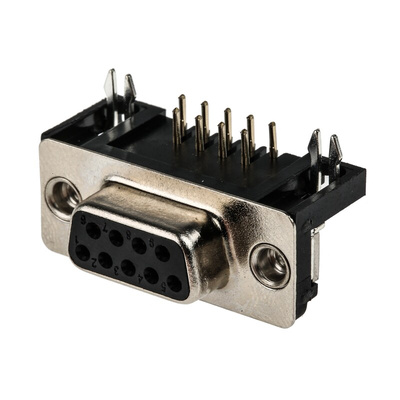

RS PRO 9 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC, Threaded Insert, Разъем

RS PRO 9 Way Right Angle Through Hole D-Sub Connector Plug, 2.77 mm Pitch, With 4-40 UNC, Threaded Insert

This RS PRO female through-hole D-Sub connector plug with a solder bucket connection is commonly used in industrial and military applications. Its IDC (insulation displacement contact) type makes it suitable for making connections to ribbon or insulated cables.

Its robust steel shell is not only plated with tin but also housed in PET (polyethylene terephthalate). This allows connections to be sustained reliably without any electrical interference from external signals. The nine brass contacts on the female plug are gold-plated, which also ensures signals can be conducted steadily.

This D-Sub connector plug has a current rating of 5 A, a 350 V working voltage and can handle a contact resistance up to 30 mΩ. It has a right-angle design that means it mounts securely with its 4-40 UNC (unified coarse thread) inserts.

Features and Benefits

• Nine brass contacts coated in gold
• Male gender
• Right angle orientation
• 4-40 UNC (Unified Coarse Thread) inserts for mounting
• Current rating of 5 A
• Voltage rating of 350 V
• PET material
• Pitch of 2.77 mm
• Measures 30.81 mm x 18.4 mm x 12.5 mm
• Minimum operating temperature of -55°C
• Maximum operating temperature of +105°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
