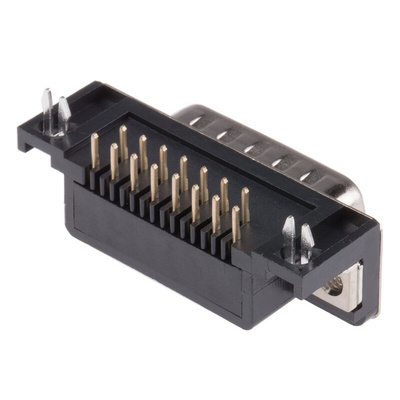

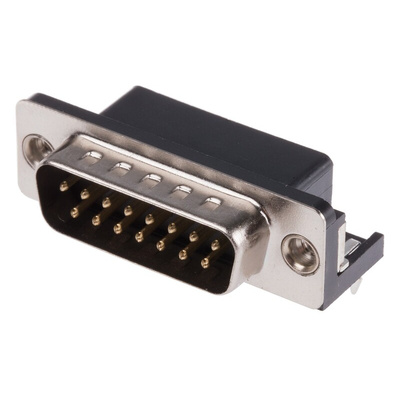

RS PRO 15 Way Right Angle Through Hole D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNC, Threaded Insert, Разъем

RS PRO 15 Way Right Angle Through Hole D-Sub Connector Plug, 2.77 mm Pitch, with 4-40 UNC, Threaded Insert

This RS PRO solder-based D-sub connector links your different electronic components. Use it to establish interfaces between circuit boards, computing devices and monitors.
The outer casing is made from polyethylene terephthalate (PET), making it both strong and lightweight so that it doesn't strain or bend the connecting pins, which can cause signal and power transfer interferences. Gold contact plating ensures durability and longevity by protecting the component against wear and tear. The brass contact material is highly conductive and ensures an uninterrupted flow of power and signal between equipment.
You can be assured that this product doesn't contain high levels of harmful substances as it carries Restriction of Hazardous Substances (RoHS) certification. The item is suitable for military and industrial applications.

Features and Benefits

• Right angle body orientation
• Brass contact material
• Gold contact plating
• Current rating of 5 A
• Voltage rating of 350 V
• Dimensions of 39.14 x 18.4 x 12.5 mm
• Male gender
• PET housing material
• Maximum operating temperature of +105°C
• Minimum operating temperature of -55°C
• Through-hole mounting type
• Mounting hardware of 4-40 UNC, threaded insert type
• 15 contacts
• Solder termination method
• Length of 39.14 mm
• Width of 18.4 mm
• Depth of 12.5 mm
• Pitch of 2.77 mm
