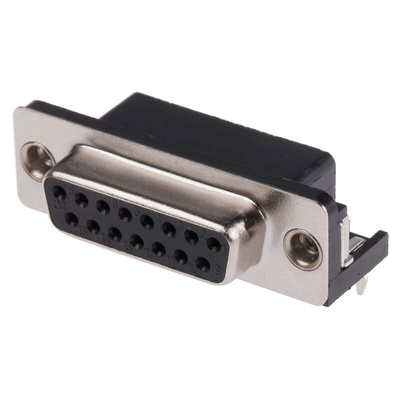

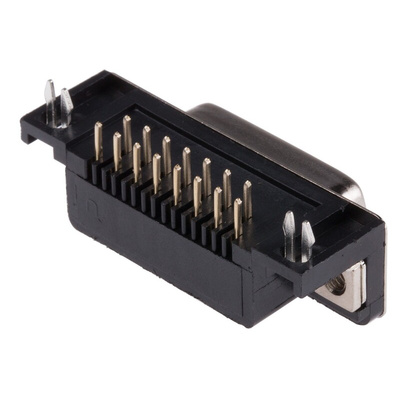

RS PRO 15 Way Right Angle Through Hole D-Sub Connector Socket, 2.77 mm Pitch, with 4-40 UNC, Threaded Insert

This solder-based D-sub connector socket from RS PRO lets you link your various electrical components. It's used to provide interfaces between devices such as circuit boards, computers and displays.


The exterior shell is constructed of polyethylene terephthalate (PET), which is both robust and lightweight. This means it won't bend or strain the connecting pins, so it will prevent signal and power transmission interferences. The unit is protected against wear and tear thanks to the durable and long-lasting gold-plated contacts. The highly conductive phosphor bronze contact material provides a continuous flow of power and communication between devices.


As this product has received Restriction of Hazardous Substances (RoHS) certification, you can be certain that it contains only trace levels of any dangerous materials. The connector can be used in both military and industrial settings.

Features and Benefits

• Right angle body orientation


• Phosphor bronze contact material


• Gold contact plating


• Current rating of 5 A


• Voltage rating of 350 V


• Dimensions of 39.14 (length) x 18.4 (width) x 12.5 mm (depth)


• Female gender


• PET housing material


• Maximum operating temperature of +105°C


• Minimum operating temperature of -55°C


• Through-hole mounting type


• Mounting hardware of 4-40 UNC, threaded insert type


• 15 contacts


• Solder termination method


• Pitch of 2.77 mm
