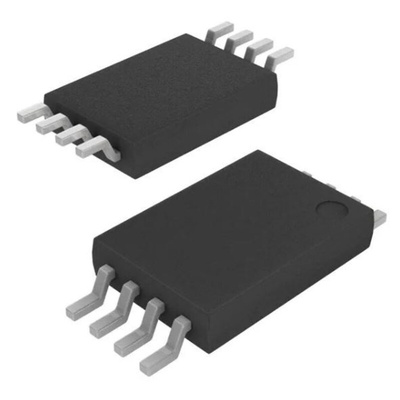

STMicroelectronics M24C04-RDW6TP, 4kbit Serial EEPROM Memory, 900ns 8-Pin TSSOP8 Serial-I2C

Description

The M24C04 is a 4-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 512 x 8 bits.The M24C04-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C04-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C04-F can be accessed with a supply voltage from 1.6 V to 5.5 V. All these devices operate with a clock frequency of 400 kHz, over an ambient temperature range of -40 °C / +85 °C.

Features

Compatible with I²C bus modes:
400 kHz
100 kHz

Memory array:
4 Kbit (512 bytes) of EEPROM
Page size: 16 byte

Single supply voltage:
M24C04-W: 2.5 V to 5.5 V
M24C04-R: 1.8 V to 5.5 V
M24C04-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)

Write:
Byte Write within 5 ms
Page Write within 5 ms

Operating temperature range:
from -40 °C up to +85 °C

Random and sequential Read modes

Write protect of the whole memory array

Enhanced ESD/Latch-Up protection

More than 4 million Write cycles

More than 200-years data retention

Packages

RoHS compliant and halogen-free(ECOPACK2®)

Datasheet - M24C04-RDW6TP
