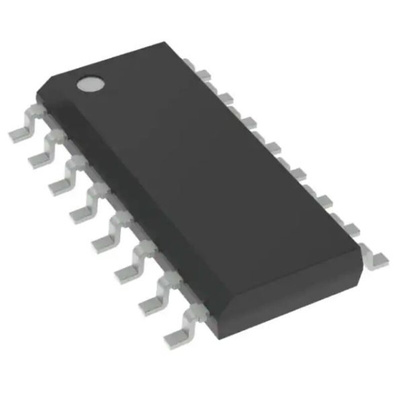

STMicroelectronics STPIC6C595MTR Surface Mount Shift Register DMOS SO-16

The STMicroelectronics Monolithic, medium voltage, low current power 8-bit shift register is designed for use in systems that require relatively moderate load power. The device contains a built-in voltage clamp on the outputs for inductive transient protection and an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.

Low Rdson of 4 Ω typ
30 mJ avalanche energy
Eight 100 mA DMOS outputs
250 mA current limit capability
33 V output clamp voltage
Device are cascadable
Low power consumption

Datasheet - STPIC6C595MTR
