102110646, Beagleboard.org BeagleBone® AI-64

BeagleBone AI-64

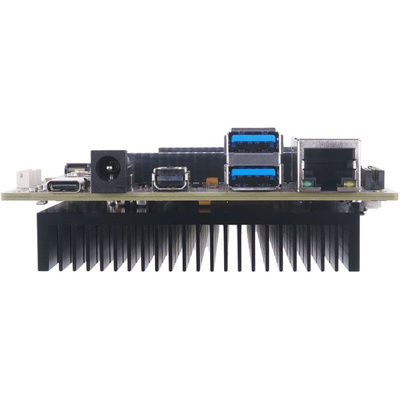

BeagleBone AI-64 is a low-power, open-source computer designed and manufactured by BeagleBoard.org. It features a powerful Texas Instruments AM5729 processor, 4GB LPDDR4 RAM and 16GB onboard eMMC flash storage, filling the gap between small SBCs and more powerful computers for industrial use. BeagleBone AI-64 can be widely used in industrial, commercial and home automation applications.

Product features

Texas Instruments TDA4VM system-on-chip with dual 64-bit Arm® Cortex®-A72, C7xDSP, and deep learning, vision and multimedia accelerators, 2.0GHz processor
4GB LPDDR4 RAM
16GB onboard eMMC flash storage
5V DC input power
USB 3.0 Type-C interface for power input and data
Dual USB super-speed(5Gbps) Type-A host ports
Gigabit ethernet
Mini-Display port
16-pin microcontroller header
Expansion headers compatible with many BeagleBone® cape add-on boards
M.2 E-key connector with PCIe, USB and SDIO for WiFi/Bluetooth and expansion
Dual 4-Lane CSI camera connectors
4-Lane DSI display connector
Micro-SD slot
1x Boot button, 1x Reset Button, 1x Power button
1x Power indication LED, 5x User LEDs
Wake-up domain serial port
Main domain serial port
JTAG 10pin Tag-Connector for debug

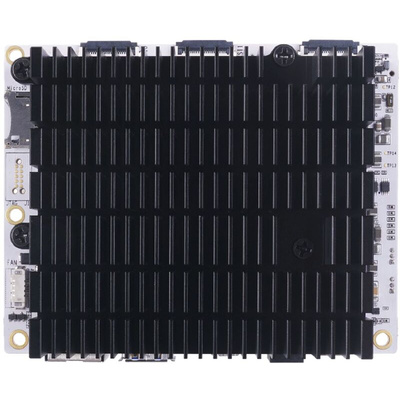

Assembled heat-sink

Key benefits

Low-power, open-source computer
Based on the Texas Instruments AM5729 processor
Features 4GB LPDDR4 RAM and 16GB onboard eMMC flash storage
Suitable for artificial intelligence (AI) applications in everyday environments
Perfect for industrial, commercial and home automation
Zero-download, out-of-the-box software experience
Open-source computer compatible with Debian GNU/Linux, Android, etc.

Datasheet - Beaglebone Ai 64
