RS PRO Joystick Switch IP20, IP65

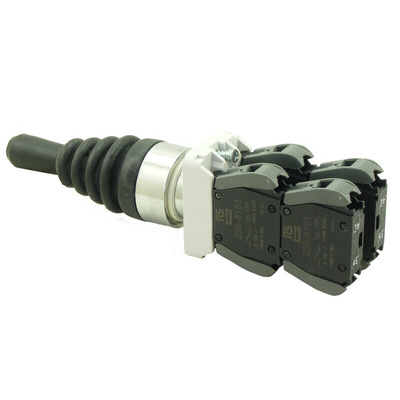

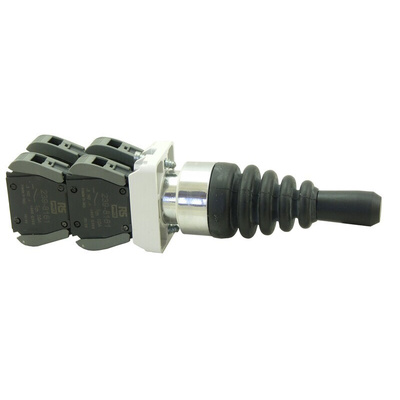

RS PRO Joystick and Contact Blocks Assembly

RS PRO is proud to offer this superb Joystick and contact block assembly. This complete unit incorporates high-quality components that include a 2-position joystick, SPST 2NO contact configuration microswitches, and a support base. Upon inspection, the 24V unit is sturdy, has precise connections, and exhibits real quality. The RS PRO 22.5 mm black coloured joystick has a chrome-plated zamak body, and metallic operators and is installed by means of metal screws to secure maximum mechanical resistance.

Features and Benefits

• Front panel mount


• 24 VAC/VDC


• Colour: Black


• 2 -position Joystick


• Body Material: Chrome-plated Zamak


• Push button Actuation: Momentary


• Contact Configuration: SPST - 2NO


• IP Rating: IP65, IP20


• Support base


• Connecting Terminals: Screw with captive cable clamp


• Outer Dia.: 30 mm


• Height: 79 mm


• Cut-out Diameter: 22.5 mm

Mechanical Specifications

• Operating Temperatures: -25° C to +70 ° C


• Stock Temperatures: -40 ° C to +80 ° C


• Mechanical durability (Millions of operations): 0.3


• B10d (Millions of operations): 0.6


• Max. switching frequency [Cicli/h]: 3600

Electrical Specifications

• Rated Operational Current Ie - AC-15 (50-60 Hz) [Vac - A]: 24V - 10A / 240V - 6A / 400V - 4A


• Rated Operational Current DC-13 [Vdc - A]: 24V - 2,8A / 125V - 0.55A / 250V - 0.27A

Approvals

• Declarations CE – UKCA


• Standards Met EN 60947-5-1 and UL 508

Applications

• Automotive


• Industrial Controls


• Control System
