RS PRO Input/Output Module, 2 Inputs, 2 Outputs, 24 V, 2NO

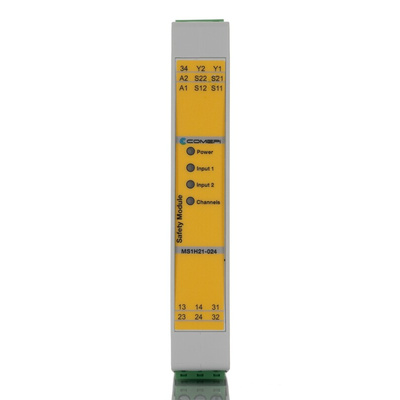

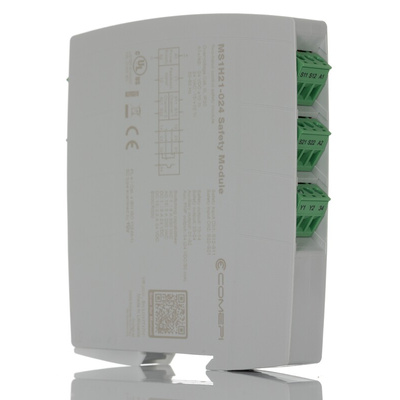

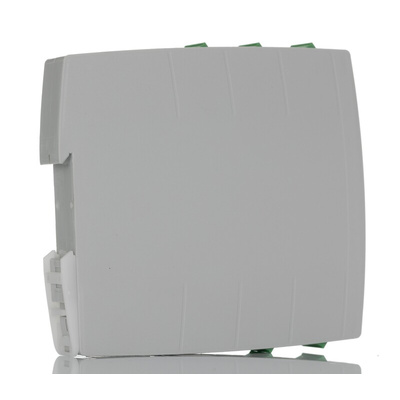

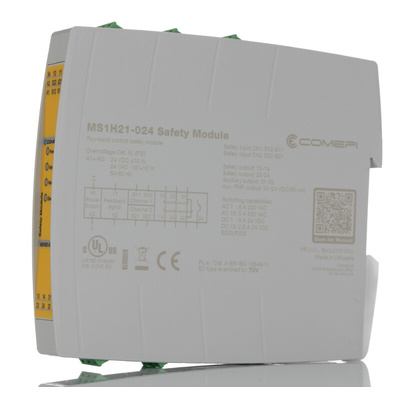

RS PRO Electromechanical Safety Module

The RS PRO safety module is the ideal solution to safely monitor and control the operation of two-hand control consoles (type III C according to EN ISO 13851). The device enables safety control outputs only if the two console buttons are activated by the operator simultaneously or with a maximum interval of 500 ms from each button.

Features and Benefits

• IIIC category device with Synchronism control according to the requirements of standard EN ISo 13851


• 2NO safety outputs + 1NC signalling output + 1 PNP auxiliary output (24Vdc/50mA)


• Two channel configurations useful for safety systems up to PL e (according to EN ISO 13849-1) (secondo EN ISO 13849-1)

Specifications

• Casing Material: Reinforced thermoplastic


• Connection terminals: Removable screw terminals


• Security channels: 2


• Safety exits: 2NO


• Auxiliary outputs: 1NC + 1PNP


• Input: 2 x (1NO+1NC)


• Configuration type: Manual or automatic

Electrical Specification

• Rated operating voltage: 24 V


• Maximum output current: 6 A


• EN ISO 1384-9: Certificate


• ISO 13849-1 Cat: Cat 4


• ISO 1384-9: Performance level: PLe


• MTTFD: 422.1 years


• PFHD: 1.35 E-10


• DC Avg: 99 %

Approvals

• Declarations CE – UKCA


• Standards Met IEC 60947-5-1 UL 508

RS PRO Datasheet
