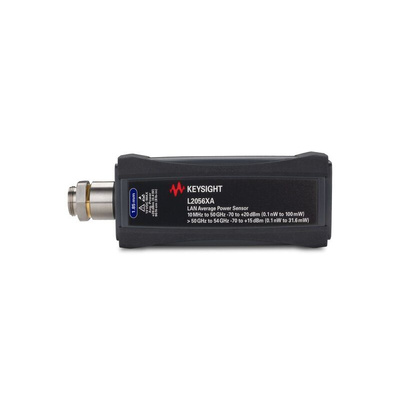

Keysight Technologies L2056XA RF Detector 54GHz

The Keysight Technologies USB/LAN connectivity models come with a wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with a super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function. The U/L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.

Frequency range of 10 MHz – 54 GHz
LAN connectivity with a wide dynamic range of -70 to +20 (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) for small signal measurements
Fast real-time measurement of 50,000 readings/sec
Real-time measurement with zero dead time to ensure every single continuous pulse is measured
Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
Internal zero and automatic calibration saves time and reduces measurement uncertainty
A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences

Datasheet - L2056XA
