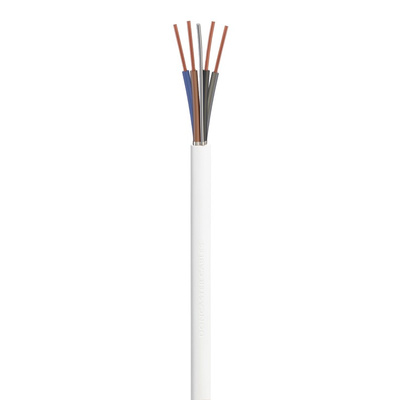

RS PRO 4 Core Power Cable, 1.5 mm², 100m, White Thermoplastic Sheath, Fire Performance, 300/500 V

RS PRO 4 Core Fire Performance Power Cable

Use this industrial screened multicore cable from RS PRO, a high quality and cost-effective 4 core cable ideal for use in a wide range of electrical applications both indoor and outdoor. The cable features a multicore construction with enhanced resistance to kinks and prevents the transmission of smoke and dangerous gases through the cable. This fire performance cable is suitable for direct placement in plaster or clipped directly to the surface. The strands are housed in a durable white Thermoplastic LSNH sheath offering excellent protection and reliability, whilst maintaining high performance.

Features and Benefits

• Tape adheres to the sheath


• Superior earth continuity


• Enhanced resistance to cable kinks


• Robust/durable design


• Prevents the transmission of smoke and dangerous gases through the cable

Specification

• Type: Fire Performance Cable


• Cable Shape: Multicore


• Sheath Material: Thermoplastic LSNH Type LTS 3 to BS 7655-6.1


• Sheath Colour: White


• Core Colour: Blue, Brown, Black, Grey


• Screened


• Cable End Type: Bare


• Length: 100 m


• Fire Behaviour: Flame Retardant

Application Information

Suitable for use in fire alarm wiring, emergency lighting or where mains cable is required to be screened.

FAQs

Do I need a screen or an unscreened cable?

Unscreened cables feature an outer cover which has been directly forced above the insulation and are ideal for electrical applications that produce low frequencies. Although unscreened, the cables provide sufficient protection and high performance whilst remaining a cost-effective solution. If you need a cable for high-frequency applications, then a screen cable would be more suitable.
