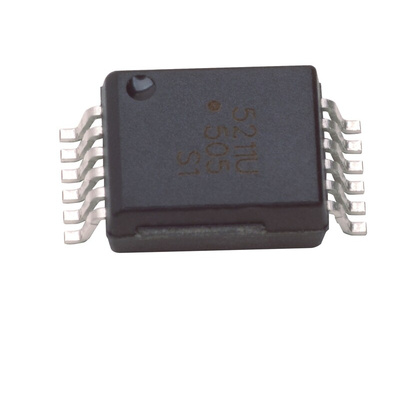

The Broadcom ACFL-3161 driver is a 10A peak, rail-to-rail output gate drive optocoupler. It comes in a compact, surface-mountable SO-12 package for spacesavings. The ACFL-3161 is primarily designed with high peak driving current capability to ensure optimum performance for direct driving SiC MOSFET or IGBT in various applications. The ACFL-3161 features fast propagation delay and tight dead time distortion, which make it ideal for driving SiC MOSFET and IGBTs at high frequency.
Industrial temperature range –40°C to +125°C
High output driving current 10A peak
Rail-to rail output voltage
Propagation delay 95 ns max
Dead time distortion 35 ns max
Wide operating supply (VDD) range 15V to 30V
Under Voltage Lock-out (UVLO) protection with hysteresis
Low supply current allows bootstrap half-bridge topology IDD = 4 mA max
Common Mode Transient Immunity (CMTI) 100 kV/μs at VCM = 1000V
Datasheet - ACFL-3161-500E| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
