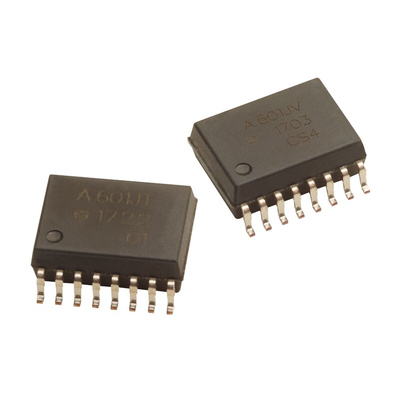

Broadcom, ASSR-601JT-000E MOSFET Output Optocoupler, Surface Mount, 16-Pin

The Broadcom ASSR-601JT is a high-voltage Photo MOSFET that is designed for automotive applications. ASSR-601JT consists of an AlGaAs infrared light emitting diode (LED) input stage optically coupled to a high voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high-voltage MOSFETs. The Photo MOSFET turns on (contact closes) with a minimum input current of 7 mA through the input LED. The Photo MOSFET turns off (contact opens) with an input voltage of 0.4V or less.

Compact solid-state bidirectional signal switch
Qualified to AEC-Q101 test guidelines
Breakdown voltage, BVDSS 1500V at IDSS = 250 μA
Avalanche rated MOSFETs
On-resistance, RDS(ON) < 250Ω at ILOAD = 10 mA
Turn on time TON < 4 ms
Turn off time TOFF < 05 ms
Package 300 mil SO-16
Creepage and clearance ≥ 8 mm (input-output)
Creepage > 5 mm (between drain pins of MOSFETs)
