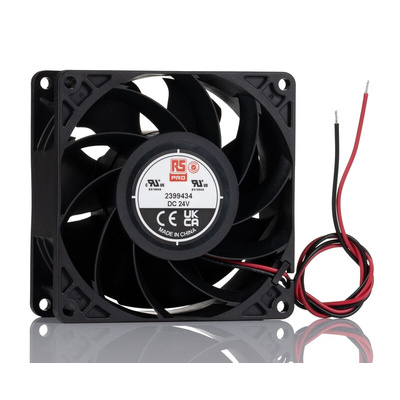

RS PRO Axial Fan, 24 V dc, DC Operation, 145.57cfm, 31.68W, 1.1A Max, 92 x 92 x 38mm

RS PRO 24V DC Ball Bearing Axial Fan, 7000 rpm

The RS PRO Axial Fan is built for reliability and is ideal for applications such as high-density server telecoms systems where a high level of airflow and consistency is paramount.
This 24V DC axial flow fan is constructed with ball bearings for a high level of repeatability, reduced friction and wear, and increased operating temperatures.
With a speed of 7000 rpm the RS PRO DC Fan creates a high-quality effective cooling solution through excellent and consistent heat dissipation.

Features and Benefits

• DC Operation


• External and internal temperature sensors


• Alarm with speed limit to reduce damage to unit


• EMC protection built into fan unit


• Plastic (94V-0) frame and propellor


• Ball bearing design


• Fan speed of 7000 rpm


• Low noise design of 64.1 dB(A)


• Connecting wire size of AWG24


• Built for repeated efficiency and long life

Approvals and Standards: ISO9001, ISO14001, UL, TUV, CE

Typical Applications:

• Server racks


• Electrical cabinets and enclosures


• Production lines


• PC towers

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
