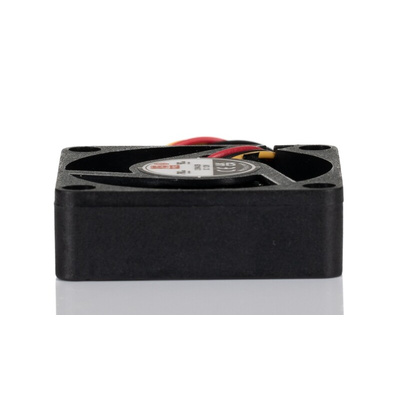

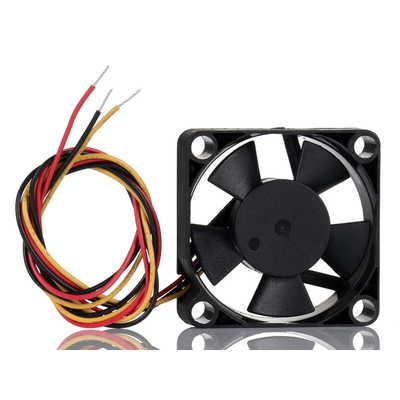

RS PRO Axial Fan, 12 V dc, DC Operation, 6.3cfm, 1.008W, 70mA Max, 35 x 35 x 10mm

RS PRO 12V DC Maglev Bearing Axial Fan, 9000 rpm

The RS PRO Axial Fan is built for reliability and is ideal for applications such as high-density server telecoms systems where a high level of airflow and consistency is paramount.
This 12V DC axial flow fan is constructed with Maglev bearings. Maglev is a magnetic bearing that utilises a sleeve bearing system when unpowered, however once powered a magnetic field is created lifting the bearing eliminating contact with the rest of the fan mechanism increasing performance and extending the fans life span.
With a speed of 9000 rpm the RS PRO DC Fan creates a high-quality effective cooling solution through excellent and consistent heat dissipation.

Features and Benefits

• DC Operation


• EMC protection built into fan unit


• Plastic (94V-0) frame and propellor


• Maglev magnetic bearings


• Fan speed of 9000 rpm


• Low noise design of 28 dB(A)


• Built for repeated efficiency and long life

Approvals and Standards: ISO9001, ISO14001, UL, TUV, CE

Typical Applications:

• Server racks


• Electrical cabinets and enclosures


• Production lines


• PC towers

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
