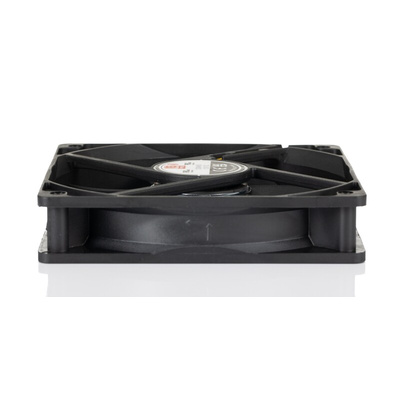

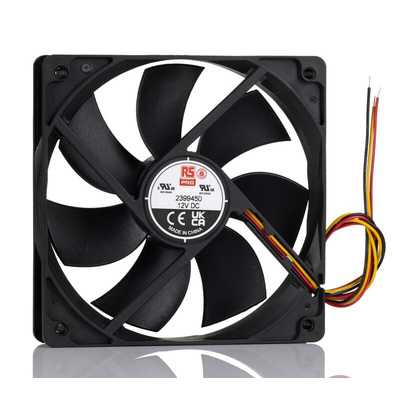

RS PRO Axial Fan, 12 V dc, DC Operation, 69.6cfm, 2.592W, 180mA Max, 119 x 119 x 25mm

RS PRO 12V DC Ball Bearing Axial Fan, 1900 rpm

The RS PRO Axial Fan is built for reliability and is ideal for applications such as high-density server telecoms systems where a high level of airflow and consistency is paramount.
This 12V DC axial flow fan is constructed with ball bearings for a high level of repeatability, reduced friction and wear, and increased operating temperatures.
With a speed of 1900 rpm the RS PRO DC Fan creates a high-quality effective cooling solution through excellent and consistent heat dissipation.

Features and Benefits

• DC Operation


• EMC protection built into fan unit


• Plastic (94V-0) frame and propellor


• Ball bearing design


• Fan speed of 1900 rpm


• Low noise design of 29 dB(A)


• Connecting wire size of AWG24


• Built for repeated efficiency and long life of 67,000 hours at 40°C

Approvals and Standards: ISO9001, ISO14001, UL, TUV, CE

Typical Applications:

• Server racks


• Electrical cabinets and enclosures


• Production lines


• PC towers
