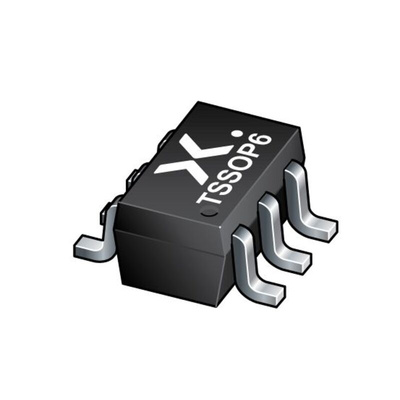

Nexperia 74AUP1T97GW-Q100H 3-Input Multifunction Logic Gate

The Nexperia configurable multiple function gate is with level translating, Schmitt-trigger inputs. The device can be configured as any of the following logic functions MUX, AND, OR, NAND, NOR, inverter and buffer
using the 3-bit input. All inputs can be

Wide supply voltage range from 2.3 V to 3.6 V
CMOS low power dissipation
High noise immunity
Overvoltage tolerant inputs to 3.6 V
Low noise overshoot and undershoot < 10 % of VCC
IOFF circuitry provides partial power-down mode operation
Latch-up performance exceeds 100 mA per JESD 78 Class II
Low static power consumption
ICC1.5 μA (maximum)

Datasheet - 74AUP1T97GW-Q100H
