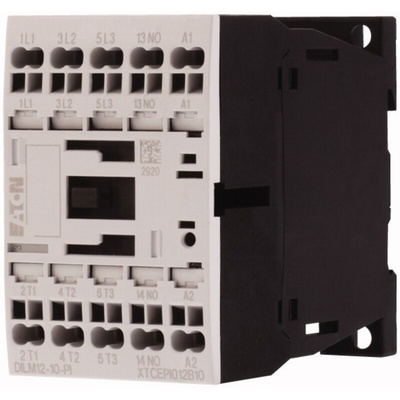

199239 DILM12-10(230V50HZ,240V60HZ)-PI, Eaton Contactor, 240 V ac Coil, 3-Pole, 12 A, 5.5 kW, 1 NO

199239

The Eaton Contactor is rated for 240 V 60 Hz and operation power of 5.5 kW. The device is available with Push-in terminals connection. It uses AC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 9000 operations per hour. It has a Spring clamp connection to Main circuit and also offers Finger-safe and back-of-hand proof terminals connection.

It has 3 Poles and 1 N/O contact
It has IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted

Note

Eaton formerly known as Moeller

Datasheet - 199239
