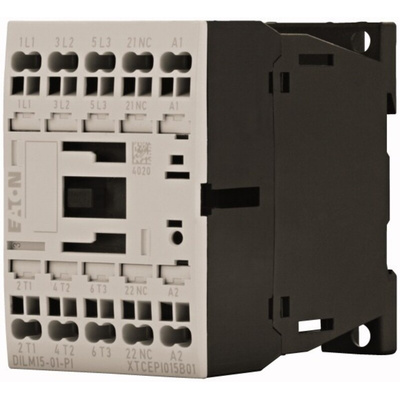

199258 DILM15-01(24VDC)-PI, Eaton Contactor, 24 V dc Coil, 3-Pole, 15.5 A, 7.5 kW, 1 NC

199258

The Eaton Contactor is rated for 24 VDC and operation power of 7.5 kW. The device is available with Push-in terminals connection. It uses DC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 9000 operations per hour. It has a Spring clamp connection to Main circuit and also offers Finger-safe and back-of-hand proof terminals connection.

It has 3 poles and 1 NC contact
It has a IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted

Note

Eaton formerly known as Moeller

Datasheet - 199258
