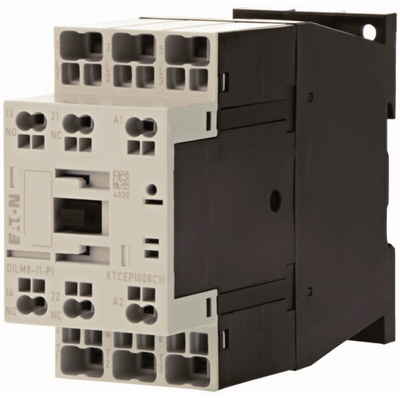

199265 DILM8-11(110V50HZ,120V60HZ)-PI, Eaton Contactor, 120 V ac Coil, 3-Pole, 7 A, 3.7 kW, 1 NC, 1 NO

199265

The Eaton Contactor is rated for 120 V 60 Hz and operation power of 3 kW. It has two contacts, 1 N/O and 1 NC. The device is available with Push-in terminals connection. It uses AC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 5000 operations per hour. It has a Spring clamp connection to the main circuit.

It has 3 Poles and 2 contacts
It has a IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted

Note

Eaton formerly known as Moeller

Datasheet - 199265
