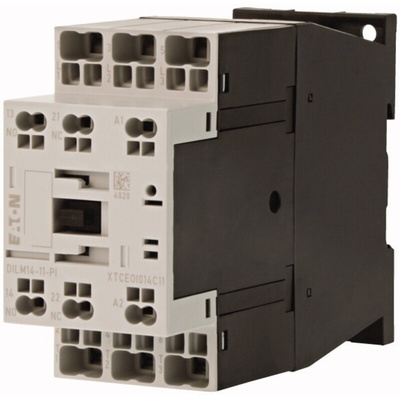

199278 DILM14-11(RDC24)-PI, Eaton Contactor, 24 → 27 V dc Coil, 3-Pole, 14 A, 6.8 kW, 1 NC, 1 NO

199278

The Eaton Contactor is rated for 24 VDC to 27 VDC and operation power of 5.5 kW. It has 2 contacts, 1 NC and 1 N/O contact. The device is available with Push-in terminals connection. It uses DC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 5000 operations per hour. It has a Spring clamp connection to the main circuit.

It has 3 Poles and 2 contacts
It has a IP20 degree of protection
It can be mounted with screws or can be DIN Rail mounted

Note

Eaton formerly known as Moeller

Datasheet - 199278
