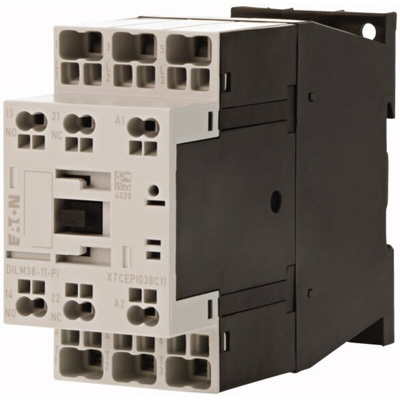

199295DILM38-11(110V50HZ,120V60HZ)-PI Coil Voltage, 199295DILM38-11(110V50HZ,120V60HZ)-PI | Moeller Contactors 3 Pole Contactor - 38 A, 120 V ac Coil, 1 NC, 1 NO, 18.5 kW

199295
The Eaton Contactor is rated for 120 V 60 Hz and operation power of 18.5 kW. The device is available with Push-in terminals connection. It uses AC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 5000 operations per hour. It has a Spring clamp connection to Main circuit and also offers Finger-safe and back-of-hand proof terminals connection.
It has 3 poles, 1 N/O and 1 NC contactIt has a IP20 degree of protectionIt can be mounted with screws or can be DIN Rail mounted
