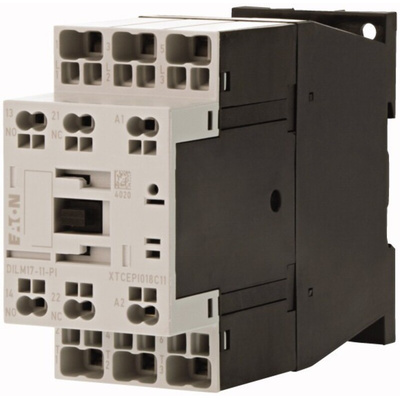

199667 DILM17-11(220V50/60HZ)-PI, Eaton Contactor, 220 V ac Coil, 3-Pole, 17 A, 8.3 kW, 1 NC, 1 NO

199667

The Eaton Contactor is rated for 220 V 60 Hz. It has two contacts, 1 N/O and 1 NC. The device is available with Push-in terminals connection. It uses AC voltage actuation, and has an operating temperature range of -25°C to 60°C. The device offers maximum operation frequency of up to 5000 operations per hour. It has a Spring clamp connection to Auxiliary circuit.

It has 3 Poles and 2 contacts
Finger-safe and back-of-hand proof terminals
It can be mounted with screws or can be DIN Rail mounted

Note

Eaton formerly known as Moeller

Datasheet - 199667
