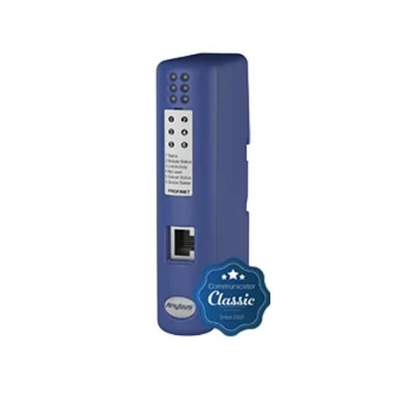

AB7317, Anybus CAN, PROFINET DB-9 Female to RJ45 Interface Converter

The Anybus interface will Integrate your CAN-based industrial devices and equipment to a PROFINET control system without the need for any changes to the device. Just connect, configure and you're done. The Anybus Communicator is a proven and trusted protocol converter gateway that connects non- industrial devices with a CAN-based protocol to PROFINET. The gateway performs an intelligent protocol conversion and presents the CAN data to the PLC/Controller as easily processed I/O data. The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current PROFINET-IO specifications guaranteeing network compatibility. Typical CAN applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.

CAN protocol converter gateways connecting CAN devices to fieldbus/Ethernet networks
Support for custom CAN 1.0, 2.0A and 2.0B protocols
Handles mixed Produce/Consume and Request/Response protocols and transactions
No hardware or software changes needed to your devices
No PLC code or function blocks required, Compatible with PLCs from all leading manufacturers
Versions with Dual Port switched Ethernet allows for daisy chaining and eliminates the need for external switches
High performance, fast throughput, max 5 ms
Anybus Configuration Manager included for easy visual CAN frame building
Dynamic transaction controlled by network master
Global free technical support and consultancy

Datasheet - AB7317
