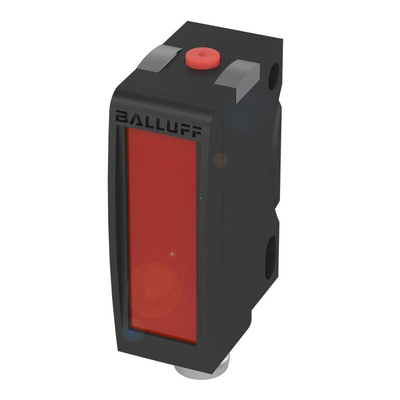

BOS01LE, BALLUFF Diffuse Photoelectric Sensor, Block Sensor, 120 mm Detection Range

The BALLUFF diffuse sensors with background suppression detect objects within a set switching distance, without being affected by reflective backgrounds. Object and background can be differentiated very definitively, especially as these diffuse sensors are characterized by their low grey value shift and hysteresis. Since the transmitter and receiver are housed together in a single unit to save space, you can easily mount our diffuse sensors and align them quickly. In addition, the highly visible light beam with the versions available in red light and lasers make it easier for you to do this. With teach-in or via potentiometer, you can easily adjust many sensor versions. Versions with fixed switching distance are also available.

Series 6K
Dimension 12 x 41.5 x 21.6 mm
Interface PNP normally open/normally closed (NO/NC)
Principle of operation Photoelectric sensor
Principle of optical operation Diffuse sensor, triangulation

Datasheet - BOS01LE
